This document describes the network data encoding protocol used for connecting Enduro/X instances between machines of different architectures. Enduro/X is operating with the same type of machine architectures and operating systems, then native format network protocol is recommended to be used, which is sending direct C structures between the Enduro/X instances.
How ever in cases when Enduro/X application is run on different type of machines and cluster link is needed between those instances, machine independent format shall be used. This format can activated by setting flag "-f" in tpbridge(8) command line arguments for both end points.
Protocol is constructed as Tag Length Value (TLV) encoded data, where Tag and Length has fixed length. Data part may be encoded as Binary Coded Decimal (BCD), ASCII or Binary data.
Protocol by it self operates in asynchronous fashion and is loosely coupled with the call semantics (i.e. when the reply is required, etc), it is out of the scope for protocol it self. How ever this document will present basic work flows for the messaging sessions.
Currently over the one server:port end-point only one TCP/IP socket is handled. Each end-point represents a node in Enduro/X cluster with configured / unique within cluster Node ID.
Table 2.1. Used Abbreviations
| Abbreviation | Description |
|---|---|
BCD | Binary Coded Decimal. The way how numbers are encoded. The decimal number is encoded in hex representation. It is more compact than ASCII, but still manageable to debug in hex dump. |
TLV | Tag Length value |
To establish physical network connection with Enduro/X application server, asynchronous socket shall be used. Each message sent in socket is prefixed with 4 bytes length indicator. The length bytes does not include length bytes by it self, but it indicates the number of bytes that are part of the incoming message. After the length indicator bytes the data bytes follows. Length bytes are order in network order, which is big-endian. Thus if message length without length bytes are in decimal is 15888, then following frame bytes shall be sent: 0x00, 0x00, 0x10, 0x3e.
For keep-a-live, zero length messages are supported. Thus Enduro/X bridge periodically may be configured to emit the zero length messages. If configured so, bridge will wait corresponding idle messages too. If not received in configured time, the connection is restarted.

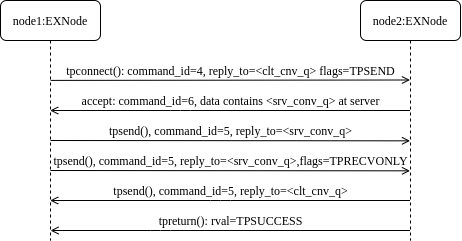

- TCP/IP Connection is being established
- Each node sends it’s local monotonic clock to other node with TIMESYNC message (see Section 9.1, “Time adjustment exchange block”) and periodically continues to resynchronize.
- Each at start and later periodically sends service table updates to other node with REFRESH messages (see Section 9.2, “Service table refresh block”).
- Nodes start to send XATMI IPC data with TPCALL messages (see Section 9.3, “TP Call / TP Reply message block”) or TPNOTIF messages (see Section 9.4, “TP Notify / TP Broadcast message block”).
Messages are encoded with:
- Two byte TAG which identifies simple data type or complex data structure. Bytes are encoded in network order big-endian.
- 4 byte (unsigned) data length identifier, also encoded in network order of big-endian. Length specifies number of is used by data.
- Data block which corresponds to the TAG meaning.
Data alignment is not used for encoded message. When parsing a protocol, any un-recognized tags shall be ignored.
All the exchanged messages within protocol as is based on the structures principles. Where we can look on structure like a complex data type. Each structure may consist of basic data types or complex data types. Which makes messages a hierarchical tree of the structures. Where leaf structures always consists of basic data types. This document uses term "block", "complex data typed block", "message blocks" and "structures" with the same meaning.
Basically network messages consists of the message blocks. These message blocks then are constructed basic data types and complex data type blocks.

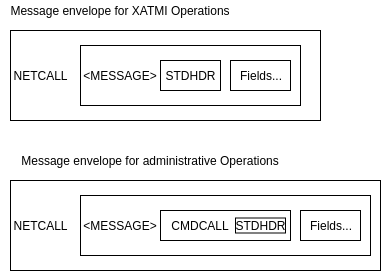

Typical message layout would be:
This section lists data types used in message protocol and their specifics.
Numbers in messages are encoded as binary coded decimals. Binary coded decimal means that value is encoded in ASCII representation of hex value. Thus when analyzing the message dumps in hex format, the encoded values can be clearly seen. For example if value of unsigned integer 43219 needs to be transmitted over the protocol, the number will be encoded in 3 bytes as follows: 0x04,0x32,0x19.
If the number is signed, then last in left-to-right order char encodes the sign. "0" is positive or zero, "1" is negative number. For example having Signed Integer type value -717711, it will be encoded as 0x07, 0x17, 0x71, 0x11.
Floats and doubles are encoded with fixed implied resolution. For Floats 5 digits decimal fraction is encoded in BCD value. For Doubles 6 digits are encoded in trailer. So for example, having Double value 654.999812, would be encoded in BCD as following bytes:x65, x49, x99, 0x81, 0x20 (note as number is not negative, it is terminated with 0).
Enduro/X may run on 32bit (LP32) and 64bit (LP64) platforms. Some data types differ between these platforms, particularity long and unsigned long as they corresponds to platform bits. Internally Enduro/X uses values which in case of longs does not go over 32bit values, but user application for example may send in UBF field 64bit long value. In that particular case C function sscanf() may overflow if maximum 64bit value is sent to 32bit value. End result is value which was returned by sscanf().
Strings and blobs are encoded as generic byte array. String data may not contain 0x00 byte, where carray can. The length is encoded in TLV Length component.
Enduro/X internally uses NTIMER data type which represents transportation of number of seconds (20 digits) and number of nanoseconds (20 digits). Thus Total length of the field is 40 digits, which in BCD is 20 bytes. The "time since" is relate and exact start time source is specified with the particular field use.
For numeric types variable length fields length is specified logical digits. For signed numeric types this does not include sign digit. Numeric type length does not include zero prefix for BCD in case if odd number of digits are present in final BCD representation.
Field length for strings, blobs (carrays) and sub-structures is specified in number of bytes.
Table 7.1. List of basic data types
| Type name | Description |
|---|---|
<Type>..X | Field length (range) form 0 to X. |
<Type>X..Y | Field length (range) from X to Y. |
<Type>X | Fixed field length (range) X. |
SHORT | Signed short field. 16bit value. |
LONG | Signed long field. 32bit or 64bit value. Depending on platform. In case if range is specified and upper value is greater than 10, then for 32bit platforms this is defaulted to 10. |
CHAR | One byte ASCII char. Shall not contain 0x00 terminator byte. In that case field TLV length shall be 0. |
FLOAT | Floating point value. See Section 7.1, “Numbers” for encoding rules. |
DOUBLE | Double precision value. See Section 7.1, “Numbers” for encoding rules. |
STRING | String value. May contains all ASCII characters, except 0x00 byte. |
CARRAY | This is blob type, may contain any bytes. |
INT | Signed integer type, 32bit type. |
ULONG | Unsigned long. 32 or 64 bit value. . Depending on platform. In case if range is specified and upper value is greater than 10, then for 32bit platforms this is defaulted to 10. |
UINT | 32bit usinged integer. |
NTIMER | Time field. seconds and nano-seconds. See Section 7.3, “Enduro/X time field”. Field is fixed length of 40 digits. |
USHORT | 16bit unsigned value. |
This section list complex data type blocks which are later incorporated in the message blocks.
All messages sent via protocol starts with this block.
Table 8.1. Network call block
| TLV TAG | Name | Format | Cond | Default value | Description |
|---|---|---|---|---|---|
0x1005 | br_magic | LONG10 | Mand | N/A | Network protocol identifier constant. Hex value is 0x6A12CC51L which corresponds to decimal value 1779616849 actually present in message (encoded in BCD) |
0x100F | msg_type | CHAR | MAND | N/A | Network message type. Following values are supported: N - XATMI Notification message (i.e. call of tpnotify(3) or tpbroadcast(3). A - Any other XATMI message (e.g. tpcall(3) or reply from tpreturn(3), etc.). X - Administrative message from ndrxd(8) or other parts. (i.e. clock sync, service table update). |
0x1019 | command_id | INT1..5 | Mand | N/A | Command code within the message type. Commands of msg_type = A: 1 - tpcall/tpacall message. Message type code TPCALL, see Section 9.3, “TP Call / TP Reply message block” 2 - tpreturn message. Message type code TPCALL, see Section 9.3, “TP Call / TP Reply message block” 3 - tpforward message. Message type code TPCALL, see Section 9.3, “TP Call / TP Reply message block” 4 - tpconnect message. Message type code TPCALL, see Section 9.3, “TP Call / TP Reply message block” 5 - conversational data. Message type code TPCALL, see Section 9.3, “TP Call / TP Reply message block” 6 - tpconnect accept reply message from server. Message type code TPCALL, see Section 9.3, “TP Call / TP Reply message block” 7 - tpdiscon message. Message type code TPCALL, see Section 9.3, “TP Call / TP Reply message block” Commands for msg_type = N: 13 tpnotify message. Message type code TPNOTIF, see Section 9.4, “TP Notify / TP Broadcast message block” 14 tpbroadcast message. Message type code TPNOTIF, see Section 9.4, “TP Notify / TP Broadcast message block” Commands for msg_type = X: 46 Service table exchange message. Message type code REFRESH, see Section 9.2, “Service table refresh block” 48 bridge, monotonic clock exchange, request. Message type code TIMESYNC, see Section 9.1, “Time adjustment exchange block” |
0x102D | buf | MESSAGE0..PMSGMAX | Mand | N/A | Message data block which corresponds to msg_type / command_id. Body described in Chapter 9, Message blocks section. |
Type code: STDHDR
All messages includes field "stdhdr" where similarly as with network call header generic details about message is kept.
Table 8.2. Standard call header block
| TLV TAG | Name | Format | Cond | Default value | Description |
|---|---|---|---|---|---|
0x1037 | command_id | SHORT1..4 | Mand | N/A | The same value as in Section 8.1, “Network call block” tag 0x1019 (command_id) |
0x1041 | proto_ver | CARRAY4 | Mand | N/A | Fixed bytes: 0x00, 0x00, 0x00, 0x00. |
0x104B | proto_magic | INT1 | Mand | N/A | Fixed value: 0 |
Type code: CMDCALL
This block is used for non XATMI messages, i.e. 0x100F of <<block-netcall> is X.
Table 8.3. Command call header
| TLV TAG | Name | Format | Cond | Default value | Description |
|---|---|---|---|---|---|
0x1055 | stdhdr | STDHDR1..PMSGMAX | Mand | N/A | Standard call header |
0x105F | magic | ULONG10 | Mand | N/A | Command call magic: Hex value 0x62327700 which corresponds to 1647474432. |
0x1069 | command | INT1..2 | Mand | N/A | The same value as in Section 8.1, “Network call block” tag 0x1019 (command_id) |
0x1073 | msg_type | SHORT1..2 | Mand | N/A | Message type code: 12 - Bridge services, used for REFRESH messages. 13 - Bridge clock info, used for TIMESYNC messages. |
0x107D | msg_src | SHORT1 | Mand | N/A | Message source: 0 - Call source is daemon. 1 - Call source is administrative command line utility. 2 - Call source is administrative command line utility. |
0x1087 | reply_queue | STRING1..128 | Mand | N/A | Reply queue string (local queue id) |
0x1091 | flags | INT1..10 | Mand | N/A | Bitwise flags combined value in decimal. Encodes following flags: 0 - no flags set. 0x0001 - Reply queue is dead. 0x0002 - Second call from caller. 0x0004 - have more message. As part of the network messages, no flags are used. And always shall set to 0. |
0x109B | caller_nodeid | INT1..3 | Mand | N/A | Enduro/X cluster node id on which message was initiated. |
Type code: SERVICE
Service block consists of series of repeated following blocks:
Table 8.4. SERVICE block
| TLV TAG | Name | Format | Cond | Default value | Description |
|---|---|---|---|---|---|
0x10B9 | mode | CHAR | Mand | N/A | Mode D - differential, F - full replace |
0x10C3 | svc_nm | STRING1..30 | Mand | N/A | XATMI service name |
0x10CD | count | INT1..6 | Mand | N/A | Signed count. For diff mode might be with minus sign (number of service server instances added or reduced). |
Type code: MBUF
Complex type block code: MBUF
As Enduro/X may send several buffers with one request, for reasons of call info data UBF buffer is used. UBF buffer might have embedded VIEW, UBF objects or UBF might contain pointer to other buffers. Thus multiple XATMI buffers are serialized.
Multi-buffer block is array of 0..N XATMI buffer typed blocks. Each Multi-buffer block encodes MBUF tag. Which by it self holds the information about what type of XATMI buffer it represents. And any additional flags, such as is this Multi-buffer block a call info. Or is it Primary buffer, or a UBF pointer to buffer (i.e. virtual pointer).
Layout of the block is following:
Table 8.5. Multi-buffer block
| TLV TAG | Name | Format | Condition | Default value | Description |
|---|---|---|---|---|---|
0x132F | tag | UINT1..10 | Mand | N/A | This is Multi-buffer tag. Not to confuse with TLV tag. This tag is used to identify the particular Multi-buffer. The tag consists of first 26 bits of this 32bit unsigned-integer. If bit No 27. is set to 1. This means that particular buffer is tpsetcallinfo(3) associated data associated with primary buffer. The call info bit must be set only for tag 0. If call info bit is set, then call primary buffer is at tag 1. If call info bit 27 is not set, then primary buffer is at tag 0. Any other tags are virtual pointer, i.e. primary buffer in that case must be UBF typed and it must hold a BFLD_PTR with references to these tags. Buffer type is by it self is encoded at bits 28..32. Currently following buffer types are supported: 0 - UBF buffer, 2 - TPINIT buffer, 3 - NULL buffer, 4 - STRING buffer, 5 - CARRAY buffer, 6 - JSON buffer, 7 - VIEW buffer. |
0x1343 | data | XATMIBUF0..PMSGMAX | Mand | N/A | This is actual XATMI buffer data. Encoded according to data type specified at bits 28..32 in* 0x132F* tag value (mbuf tag field name). |
Abstract type code: XATMIBUF
Enduro/X supports different data types which are the "body" of the XATMI IPC calls. Data types are complex ones like UBF which is hash of arrays, VIEW data which "managed" are C structures. And basic data types such as strings and blobs (carray).
UBF data is encoded as array of Compiled 32bit FLDID UBF field id and corresponding value. UBF field may include another UBF buffer or it may include VIEW data. Fields in the message must be presented in growing order of the field types and field IDs. Which basically makes that all UBF fields in protocol message must be present in sorted by compiled filed id from smallest ID till the biggest ID. If the order is not complied with, the message conversation fails and message will be dropped.
Field id is generated by mkfldhdr(8) program.
Table 8.6. UBF Buffer type block
| TLV TAG | Name | Format | Cond | Default value | Description |
|---|---|---|---|---|---|
0x10FF | bfldid | UINT1..9 | Mand | N/A | Compiled UBF field id (for BFLD_SHORT type). |
0x1113 | short | SHORT1..6 | C1 | N/A | Short value for bfldid (for BFLD_LONG type). |
0x111D | long | LONG1..20 | C1 | N/A | Long value for bfldid (for BFLD_CHAR type). |
0x1127 | char | CHAR | C 1 | N/A | Char value for bfldid (for BFLD_CHAR type). |
0x1131 | float | FLOAT1..40 | C1 | N/A | Float value for bfldid (for BFLD_FLOAT type). |
0x113B | double | DOUBLE1..40 | C1 | N/A | Double precision value for bfldid (for BFLD_DOUBLE type). |
0x1145 | string | STRING0..PMSGMAX | C1 | N/A | String value for bfldid (for BFLD_STRING type). |
0x114F | carray | CARRAY0..PMSGMAX | C1 | N/A | Blob value for bfldid (for BFLD_CARRAY type). |
0x1152 | ptr | LONG1..20 | C1 | N/A | Virtual pointer to MBUF tag (without type bits and call info bits) (for BFLD_PTR type). |
0x1153 | ubf | XATMIBUF0..PMSGMAX | C1 | N/A | Embedded UBF (for BFLD_UBF type). |
0x1154 | view | XATMIBUF1..PMSGMAX | C1 | N/A | Embedded VIEW (for BFLD_VIEW type). |
C1 - Only one field is present from all with C1. Field must correspond the field type for which corresponds the encoded data type in bfldid (i.e. bits 26..32).
UBF field id bits 26+ meaning:
Table 8.7. UBF Type numbers
| Type name | Type number |
|---|---|
BFLD_SHORT | 0 |
BFLD_LONG | 1 |
BFLD_CHAR | 2 |
BFLD_FLOAT | 3 |
BFLD_DOUBLE | 4 |
BFLD_STRING | 5 |
BFLD_CARRAY | 6 |
BFLD_PTR | 9 |
BFLD_UBF | 10 |
BFLD_VIEW | 11 |
Having UBF buffer as:
T_LONG_3_FLD 0 T_LONG_3_FLD 0 T_LONG_3_FLD 0 T_LONG_3_FLD 889991 T_DOUBLE_FLD 3.141590 T_STRING_7_FLD T_STRING_7_FLD T_STRING_7_FLD ANOTHER UB T_STRING_9_FLD T_STRING_9_FLD T_STRING_9_FLD T_STRING_9_FLD HELLO WORLD UB
With field IDs defined as:
*base 1000 T_LONG_3_FLD 33 long - 1 Long test field 3 T_DOUBLE_FLD 51 double - 1 Double test field 1 T_STRING_7_FLD 67 string - 1 String test field 7 T_STRING_9_FLD 69 string - 1 String test field 9
The serialized data would look like:
0370 10 . 0380 ff 00 00 00 05 01 67 77 32 29 11 45 00 00 00 00 ......gw2).E.... 0390 10 ff 00 00 00 05 01 67 77 32 29 11 45 00 00 00 .......gw2).E... 03a0 00 10 ff 00 00 00 05 01 67 77 32 29 11 45 00 00 ........gw2).E.. 03b0 00 00 10 ff 00 00 00 05 01 67 77 32 29 11 45 00 .........gw2).E. 03c0 00 00 0e 48 45 4c 4c 4f 20 57 4f 52 4c 44 20 55 ...HELLO WORLD U 03d0 42
VIEW buffer data is encoded as array. But with exception VIEW meta data must follow first and only once.
Table 8.8. VIEW metadata type block
| TLV TAG | Name | Format | Cond | Default value | Description |
|---|---|---|---|---|---|
0x13B1 | vname | STRING0..33 | Mand | N/A | View name. Might be empty string For "emtpy" occurrences when embedded in UBF sub-field |
0x13BB | vflags | UINT1 | Mand | 0 | View flags. Not used and must be sent as 0 |
Following block repeats with each of the view field occurrence:
Table 8.9. VIEW Buffer type block (array of)
| TLV TAG | Name | Format | Cond | Default value | Description |
|---|---|---|---|---|---|
0x134D | cname | STRING1..256 | Mand | N/A | View field name |
0x1360 | short | SHORT1..6 | C1 | N/A | Short value |
0x1361 | long | LONG1..20 | C1 | N/A | Long value |
0x1362 | char | CHAR | C1 | N/A | ASCII char byte |
0x1363 | float | FLOAT1..40 | C1 | N/A | Float value |
0x1364 | double | DOUBLE1..40 | C1 | N/A | Double |
0x1365 | string | STRING0..PMSGMAX | C1 | N/A | String value |
0x1366 | carray | CARRAY0..PMSGMAX | C1 | N/A | Carray (blob) value |
0x1367 | int | INT1..12 | C1 | N/A | Integer value |
C1 - One of the fields must be present according to view field type.
Having VIEW C struct as:
struct UBTESTVIEW2 {
short tshort1;
long tlong1;
char tchar1;
float tfloat1;
double tdouble1;
char tstring1[15];
char tcarray1[10];
};The VIEW is serialized in the following XATMI buffer block:
0330 13 b1 00 00 00 0b 55 42 54 45 53 54 56 49 45 57 ......UBTESTVIEW 0340 32 13 bb 00 00 00 01 00 13 4d 00 00 00 07 74 73 2........M....ts 0350 68 6f 72 74 31 13 60 00 00 00 02 10 00 13 4d 00 hort1.`.......M. 0360 00 00 06 74 6c 6f 6e 67 31 13 61 00 00 00 02 20 ...tlong1.a.... 0370 00 13 4d 00 00 00 06 74 63 68 61 72 31 13 62 00 ..M....tchar1.b. 0380 00 00 01 47 13 4d 00 00 00 07 74 66 6c 6f 61 74 ...G.M....tfloat 0390 31 13 63 00 00 00 05 04 00 00 00 00 13 4d 00 00 1.c..........M.. 03a0 00 08 74 64 6f 75 62 6c 65 31 13 64 00 00 00 05 ..tdouble1.d.... 03b0 50 00 00 00 00 13 4d 00 00 00 08 74 73 74 72 69 P.....M....tstri 03c0 6e 67 31 13 65 00 00 00 03 36 58 58 13 4d 00 00 ng1.e....6XX.M.. 03d0 00 08 74 63 61 72 72 61 79 31 13 66 00 00 00 0a ..tcarray1.f.... 03e0 37 58 58 00 00 00 00 00 00 10 7XX.............
Other buffers basically includes generic byte array of data.
String buffer data normally does not include 0x00 terminating EOS symbol. Empty strings or string termination is identified by TLV length component.
Message blocks are actual business messages which are used for exchanging the information between cluster instances. Message blocks uses basic and complex data type blocks previously described to construct the messages.
When bridge establishes connection between cluster each node sends to other node it’s monotonic clock value. Each bridge end-point remembers this value and performs any adjustments on TPCALL message, tag 0x11E5 (timer). The value when TPCALL message is received, is adjusted to make the time field to appear to be relevant to local monotonic clock.
Message starts with NETCALL. NETCALL tag 0x1019 (command_id) is set to 48. Tag 0x100F (msg_type) is set to X. Under the tag 0x102D (buf) follows the time sync message:
Table 9.1. Time sync message
| TLV TAG | Name | Format | Cond | Default value | Description |
|---|---|---|---|---|---|
0x10A5 | call | CMDCALL1..PMSGMAX | Mand | N/A | Generic call information with following specifics: - STDHDR tag 0x1037 (command_id) is set to 48 - CMDCALL tag 0x1069 (command) is set to 48 - CMDCALL tag 0x1073 (msg_type) is set to 13 |
0x10AF | time | NTIMER | Mand | N/A | Local monotonic time. |
0x10B0 | mode | INT1 | Mand | N/A | Following values possible: 1 - Async clock data, used at connection establishment. 2 - Synchronous clock data request. 3 - Synchronous Reply on clock data request for incoming mode 2 message. |
0x10B1 | seq | LONG1..20 | Mand | N/A | Call sequence number. In case if mode tag is 2, the value must be echo in message of mode 3. |
0x10B2 | orig_nodeid | INT1..3 | Mand | N/A | Message originating node id. In case of mode 3 message, it must be echo from mode 2 message. |
0x10B3 | orig_timestamp | LONG1..20 | Mand | N/A | Message originating unix epoch timestamp in seconds. In case of mode 3 message, it must be echo from mode 2 message. |
System can be configured so that during the idle time (no traffic is sent overt the bridges, a time sync messages are delivered periodically).
0000 10 05 00 00 00 06 01 77 96 16 84 90 10 0f 00 00 .......w........ 0010 00 01 58 10 19 00 00 00 02 04 80 10 2d 00 00 00 ..X.........-... 0020 95 10 a5 00 00 00 75 10 55 00 00 00 19 10 37 00 ......u.U.....7. 0030 00 00 02 04 80 10 41 00 00 00 04 00 00 00 00 10 ......A......... 0040 4b 00 00 00 01 00 10 5f 00 00 00 05 16 47 47 44 K......_.....GGD 0050 32 10 69 00 00 00 02 04 80 10 73 00 00 00 02 01 2.i.......s..... 0060 30 10 7d 00 00 00 01 30 10 87 00 00 00 20 2f 64 0.}....0..... /d 0070 6f 6d 31 2c 63 6c 74 2c 72 65 70 6c 79 2c 74 70 om1,clt,reply,tp 0080 62 72 69 64 67 65 2c 31 33 35 37 31 2c 37 10 91 bridge,13571,7.. 0090 00 00 00 01 00 10 9b 00 00 00 01 10 10 af 00 00 ................ 00a0 00 14 00 00 00 00 00 00 00 15 07 21 00 00 00 00 ...........!.... 00b0 00 07 55 67 18 84 ..Ug..
Service table refresh messages are used to notify other cluster node with the XATMI services locally advertised. Service tables are send periodically and asynchronously. Messages includes two modes - FULL mode, where full service tables is sent, or DIFFERENTIAL service table is sent, which only holds the updates about services number of instances add / removed.
Message starts with NETCALL. NETCALL tag 0x1019 (command_id) is set to 46. Tag 0x100F (msg_type) is set to X. Under the tag 0x102D (buf) follows the service table refresh message:
Table 9.2. Service tables refresh messages
| TLV TAG | Name | Format | Cond | Default value | Description |
|---|---|---|---|---|---|
0x10A5 | call | CMDCALL1..PMSGMAX | Mand | N/A | Generic call information with following specifics: - STDHDR tag 0x1037 (command_id) is set to 46 - CMDCALL tag 0x1069 (command) is set to 46 - CMDCALL tag 0x1073 (msg_type) is set to 12 |
0x10E1 | mode | CHAR | Mand | N/A | F - full, D - differential. |
0x10EB | count | INT1..6 | Mand | N/A | Number of SERVICE blocks in 0x10F5(svcs) field |
0x10F5 | svcs | SERVICE0..PMSGMAX | Mand | N/A | Services block (array of) |
Messages are sent asynchronously and each site can decide at what frequency send the messages. Normally full service tables are sent when link is established and periodically at configured interval. Differential service tables are sent to other node, when locally in service table listings changes hash happened.
0000 10 05 00 00 00 06 01 77 96 16 84 90 10 0f 00 00 .......w........ 0010 00 01 58 10 19 00 00 00 02 04 60 10 2d 00 00 01 ..X.......`.-... 0020 42 10 d7 00 00 00 66 10 55 00 00 00 18 10 37 00 B.....f.U.....7. 0030 00 00 01 00 10 41 00 00 00 04 00 00 00 00 10 4b .....A.........K 0040 00 00 00 01 00 10 5f 00 00 00 05 16 47 47 44 32 ......_.....GGD2 0050 10 69 00 00 00 02 04 60 10 73 00 00 00 02 01 20 .i.....`.s..... 0060 10 7d 00 00 00 01 10 10 87 00 00 00 12 2f 64 6f .}.........../do 0070 6d 32 2c 73 79 73 2c 62 67 2c 6e 64 72 78 64 10 m2,sys,bg,ndrxd. 0080 91 00 00 00 01 00 10 9b 00 00 00 01 20 10 e1 00 ............ ... 0090 00 00 01 46 10 eb 00 00 00 01 60 10 f5 00 00 00 ...F......`..... 00a0 1d 10 b9 00 00 00 01 46 10 c3 00 00 00 09 54 49 .......F......TI 00b0 4d 45 4f 55 54 53 56 10 cd 00 00 00 01 10 10 f5 MEOUTSV......... 00c0 00 00 00 1a 10 b9 00 00 00 01 46 10 c3 00 00 00 ..........F..... 00d0 06 54 45 53 54 53 56 10 cd 00 00 00 01 10 10 f5 .TESTSV......... 00e0 00 00 00 1a 10 b9 00 00 00 01 46 10 c3 00 00 00 ..........F..... 00f0 06 4e 55 4c 4c 53 56 10 cd 00 00 00 01 10 10 f5 .NULLSV......... 0100 00 00 00 18 10 b9 00 00 00 01 46 10 c3 00 00 00 ..........F..... 0110 04 45 43 48 4f 10 cd 00 00 00 01 10 10 f5 00 00 .ECHO........... 0120 00 1f 10 b9 00 00 00 01 46 10 c3 00 00 00 0b 52 ........F......R 0130 45 54 53 4f 4d 45 44 41 54 41 10 cd 00 00 00 01 ETSOMEDATA...... 0140 10 10 f5 00 00 00 1c 10 b9 00 00 00 01 46 10 c3 .............F.. 0150 00 00 00 08 53 4f 46 54 54 4f 55 54 10 cd 00 00 ....SOFTTOUT.... 0160 00 01 10 ...
Tpcall message block is used for lot of XATMI messaging purposes. It services as call for tpcall(3), tpacall(3), Message starts with NETCALL. NETCALL tag 0x1019 (command_id) is set to value in range from 1 - 7. Tag 0x100F (msg_type) is set to A.
Table 9.3. XATMI call
| TLV TAG | Name | Format | Cond | Default value | Applicable command_id | Description |
|---|---|---|---|---|---|---|
0x1055 | stdhdr | STDHDR1..PMSGMAX | Mand | N/A | Any | Contains command_id: 1 - tpcall/tpacall message. 2 - tpreturn message. 3 - tpforward message (RFU, forwards are received as command_id 1). 4 - tpconnect message. 5 - conversational data. 6 - tpconnect reply message from server (accept/reject). 7 - tpdiscon message. |
0x116D | name | STRING0..30 | Mand | N/A | 1,3,4 | Service name to be called. |
0x1177 | reply_to | STRING0..30 | Mand | N/A | 1,2,3,4,6,7 | Caller queue identifier. For command_id 1, 2, 3, 4, 7 - call originator queue name. For command_id 5, 7 - for conversational data, this field indicates the queue to which data shall be sent (local recipient on destination node). |
0x1181 | callstack | STRING0..32 | Mand | N/A | Any | From left to right. Each byte indicates the Enduro/X cluster node ide from which message was forwarded to next node. When tpcall()/tpforward() or tpconnect() is made from one node to another, the source node number (NDRX_NODEID) is appended to callstack. When reply message is processed (e.g. tpreturn), the closest to the left connected node of the current node is used to deliver reply back. |
0x118B | my_id | STRING1..96 | Mand | N/A | Any | Process identifier in message originating node. See bellow myid field format. Mandatory for command_id: 1,4. For other commands, it is optional/empty field. |
0x1195 | sysflags | LONG1..20 | Mand | 0 | Any | Bitwise ORed flags of: 0x00000001 - internal system error. Used in command_id value 2 (tpreturn). If flag is set tag 0x11B3 is loaded with XATMI error code that shall be returned to the caller, i.e. value becomes a tperrno result. This value maybe sent also in command_id 5, when server for tpconnect(3) did not accept the connection. 0x00000002 - used by command_id 2, to indicate that server has performed return from the conversation. 0x00000100 - marking that auto-transaction is started, and call receiver (command_id 1) becomes auto-transaction owner. |
0x119F | cd | INT1..5 | Mand | 0 | 1,2,4,5,7 | This is connection id. Used as correlator to link request with reply or identify conversational session. For tpcall commands used only if tag 0x12DF does not contain 0x00000004 (TPNOREPLY) flag. - For command_id 1 (tpcall) and 2 (tpreturn) minimum is 1 and maximum is 16384. - For conversational data minimum is 0 and maximums is 9. |
0x11A9 | rval/usr1 | INT1..10 | Mand | 0 | Any | For tpreturn command used to transport rval (values of TPSUCCESS (0x00000002), TPFAIL (0x00000001)), for other commands used as optional user data 1. Currently is used by Enduro/X cache events (e.g. microseconds for cache data). |
0x11B3 | rcode/usr2 | LONG1..20 | Mand | 0 | Any | For tpreturn command used to transport rcode. For other messages functions as custom user data 2. Currently is used by Enduro/X smart cache events (e.g. epoch seconds for cache data). |
0x11B4 | user3 | INT1..10 | Mand | 0 | Any | Custom data associated with the message. - For smart cache reset events indicates tperrno to be saved. |
0x11B5 | user4 | LONG1..20 | Mand | 0 | Any | Custom user data assoicated with the message. - For smart cache events indicates the tpurcode to be cached. |
0x11B6 | clttout | INT1..10 | Mand | N/A | 1,4 | Indicates number of seconds in which XATMI client (caller) will generate TPETIME error. This flag is used only in case if flag 0x00000020 (TPNOTIME) is not set in tag 0x11C7. |
0x11BD | extradata | STRING0..41 | Mand | Empty | Any | Extra call data. Currently Enduro/X uses this for: - Event delivery (tppost(3) - contains eventname). |
0x11C7 | flags | LONG1..20 | Mand | 0 | Any | Call flags e.g. TPTRAN, etc. see xatmi.h for details. |
0x11D1 | timestamp | LONG1..20 | Mand | N/A | Any | Unix epoch time stamp in seconds. For original messages (i.e. command_id 1 (except kept original if doing forward), 4) it is set by caller. For reply and related messages (command_id 2, 5, 6 and 7) it is set to original request value. Field is used for matching request with reply. |
0x11DB | callseq | UINT1..10 | Mand | N/A | Any | Call sequence number (is incremented by calling process for each of the new requests, overlapping). Field is used for request and reply matching. I.e. in requests it is set for command_id 1 (except if doing forward), 4. In reply and related messages (command_id 2, 5, 6 and 7) it set to to request value. Value must be in range of 0..4294967295. |
0x11DC | msgseq | UINT1..10 | Mand | N/A | 4,5,6,7 | Message sequence number for conversational data. As tpbridge process is is multi-threaded, message reordering might happen. In each conversational data direction this keeps counter keeps to increment (by overlapping to 0). Value must be in range of 0..4294967295. |
0x11E5 | timer | NTIMER | Mand | N/A | Any | Local monotonic time when the call was prepared/sent from the node to other node. |
0x11F9 | data | MUBF | Mand | N/A | Any | Associated XATMI data buffer with the call. In case if data is not used, NULL typed buffer must be sent |
0x1203 | tmxid | STRING0..48 | Mand | Empty | Any | Global Tx: Global transaction ID (if value is not empty). This is base64 encoded transaction identifier. See bellow section for the XID format. |
0x120D | tmrmid | SHORT1..5 | Mand | 0 | Any | Global Tx: Resource manager ID (RMID) which started the global transaction. |
0x1217 | tmnodeid | SHORT1..5 | Mand | 0 | Any | Global Tx: Cluster Node ID which started the transaction. |
0x1221 | tmsrvid | SHORT1..5 | Mand | 0 | Any | Global Tx: XATMI server id which started the transaction on particular cluster node. |
0x122B | tmknownrms | STRING0..32 | Mand | Empty | Any | Global Tx: List (filled from left to right) identifies the RMIDs which are involed in this global transaction. |
0x1235 | tmtxflags | SHORT1..5 | Mand | 0 | Any | Global Tx: Transaction flags (bitwise). Currently supported values: - 0x0001 - Gloal transaction is marked for abort only. |
Fields for non applicable commands/messages shall be empty string or 0 integer.
Table 9.4. Identifier formats
| Type | Format | Example |
|---|---|---|
Client | clt,<binary name>,<pid>,<context id>,<node id> | clt,atmiclt3,109966,1,1 |
Server | srv,<binary name>,<server id>,<pid>,<contextid>,<nodeid> | srv,atmisv3,10,109930,1,2 |
The XID transported over the bridge protocol is encoded base64 data:
Table 9.5. Serialized XID format
| Bytes | Data |
|---|---|
0-3 | Format ID, constant: 0x6194f7a1 or 0xa1f79461 depending on the source platform endianess. |
4 | global transaction identifier length, const 64 |
5 | branch qualifier length, const 64 |
6-21 | GUID of transaction |
22 | Resource manager ID (RMID) |
23-24 | Enduro/X cluster node id, network order |
24-25 | Enduro/X TMSRV server id on cluster node which manages the transaction. |
This section describes typical XATMI workflows.
- Bridge sends command_id 1 to Node 2.
- Node 2. sends reply back with command_id 2.
- Node 1. sends command_id 1 to Node 2. Tag 0x11C7 (flags) contains flag 0x00000004 so that that reply is not required back.
Sequence of steps for typical conversational session:
- Node 1. sends command_id 4 (tpconnect()) to Node 2. The 0x1177 (reply_to) tag is filled with the client’s conversation queue name.
- Node 2. sends command_id 6 accept message to Node 1. The MBUF reply buffer contains STRING buffer which contains local queue name which server has created for this particular conversation. If the Node 2. decides to reject the conversation for some reason, the command_id 6 must be sent back with tag 0x1195 (sysflags) containging the flag 0x00000001 (system error).
- Node 1. (or Node 2.) depending on flags TPRECVONLY flag sends the data to other node with command_id 5. Tag 0x1177 (reply_to) contains the destination conversation queue name with the XATMI data loaded into 0x11F9.
- If client has control it may terminate the conversation by sending command_id 7 to the server.
- The server may terminate the conversation with command_id 2, with the rval either set to TPSUCCESS or TPFAIL, to indicate the status.
Example client connects, sends a data to server, then server sends a data back to client and server returns:
Events are distributed to nodes, as single call. The command_id is set to 1 and reply of command_id 2 is required and tag 0x11B3 (rcode) shall be loaded with number of dispatched messages to the subscribed servers.
The service which shall be called on the destination node is TPEVDOPOST<%03hd - nodeid> which is responsible for dispatching events locally on the node.
Event name is loaded into tag 0x11BD (extradata).
tpcall() request, "EXBENCH" service request
0000 10 05 00 00 00 06 01 77 96 16 84 90 10 0f 00 00 .......w........ 0010 00 01 41 10 19 00 00 00 01 10 10 2d 00 00 01 29 ..A........-...) 0020 11 59 00 00 00 18 10 37 00 00 00 01 10 10 41 00 .Y.....7......A. 0030 00 00 04 00 00 00 00 10 4b 00 00 00 01 00 11 6d ........K......m 0040 00 00 00 07 45 58 42 45 4e 43 48 11 77 00 00 00 ....EXBENCH.w... 0050 23 2f 74 65 73 74 31 2c 63 6c 74 2c 72 65 70 6c #/test1,clt,repl 0060 79 2c 65 78 62 65 6e 63 68 63 6c 2c 31 30 33 39 y,exbenchcl,1039 0070 34 38 2c 32 11 81 00 00 00 00 11 8b 00 00 00 18 48,2............ 0080 63 6c 74 2c 65 78 62 65 6e 63 68 63 6c 2c 31 30 clt,exbenchcl,10 0090 33 39 34 38 2c 32 2c 31 11 95 00 00 00 01 00 11 3948,2,1........ 00a0 9f 00 00 00 03 16 38 20 11 a9 00 00 00 01 00 11 ......8 ........ 00b0 b3 00 00 00 01 00 11 b4 00 00 00 01 00 11 b5 00 ................ 00c0 00 00 01 00 11 b6 00 00 00 03 09 99 90 11 bd 00 ................ 00d0 00 00 00 11 c7 00 00 00 01 00 11 d1 00 00 00 06 ................ 00e0 01 63 37 74 46 90 11 db 00 00 00 01 01 11 dc 00 .c7tF........... 00f0 00 00 01 00 11 e5 00 00 00 14 00 00 00 00 00 00 ................ 0100 00 07 99 57 00 00 00 00 00 00 94 81 31 74 11 f9 ...W........1t.. 0110 00 00 00 0d 13 2f 00 00 00 01 00 13 43 00 00 00 ...../......C... 0120 00 12 03 00 00 00 00 12 0d 00 00 00 01 00 12 17 ................ 0130 00 00 00 01 00 12 21 00 00 00 01 00 12 2b 00 00 ......!......+.. 0140 00 00 12 35 00 00 00 01 00 ...5.....
tpcall() request, "EXBENCH" service return (echo the same data back in UBF)
0000 10 05 00 00 00 06 01 77 96 16 84 90 10 0f 00 00 .......w........ 0010 00 01 41 10 19 00 00 00 01 20 10 2d 00 00 01 0a ..A...... .-.... 0020 11 59 00 00 00 18 10 37 00 00 00 01 20 10 41 00 .Y.....7.... .A. 0030 00 00 04 00 00 00 00 10 4b 00 00 00 01 00 11 6d ........K......m 0040 00 00 00 00 11 77 00 00 00 23 2f 74 65 73 74 31 .....w...#/test1 0050 2c 63 6c 74 2c 72 65 70 6c 79 2c 65 78 62 65 6e ,clt,reply,exben 0060 63 68 63 6c 2c 31 30 33 39 34 38 2c 32 11 81 00 chcl,103948,2... 0070 00 00 00 11 8b 00 00 00 00 11 95 00 00 00 01 00 ................ 0080 11 9f 00 00 00 03 16 38 20 11 a9 00 00 00 01 20 .......8 ...... 0090 11 b3 00 00 00 01 00 11 b4 00 00 00 01 00 11 b5 ................ 00a0 00 00 00 01 00 11 b6 00 00 00 03 09 99 90 11 bd ................ 00b0 00 00 00 00 11 c7 00 00 00 01 00 11 d1 00 00 00 ................ 00c0 06 01 63 37 74 46 90 11 db 00 00 00 01 01 11 dc ..c7tF.......... 00d0 00 00 00 01 00 11 e5 00 00 00 14 00 00 00 00 00 ................ 00e0 00 00 07 99 57 00 00 00 00 00 00 94 81 31 74 11 ....W........1t. 00f0 f9 00 00 00 0d 13 2f 00 00 00 01 00 13 43 00 00 ....../......C.. 0100 00 00 12 03 00 00 00 00 12 0d 00 00 00 01 00 12 ................ 0110 17 00 00 00 01 00 12 21 00 00 00 01 00 12 2b 00 .......!......+. 0120 00 00 00 12 35 00 00 00 01 00 ....5.....
Call is used to distribute broadcast and notification messages over the bridge connection. This message is utilized for tpnotify(3) and tpbroadcast(3) XATMI calls.
Message starts with NETCALL. NETCALL tag 0x1019 (command_id) is set to value in range from 13 - 14. Tag 0x100F (msg_type) is set to N.
Table 9.6. TPNOTIF call
| TLV TAG | Name | Format | Cond | Default value | Applicable command_id | Description |
|---|---|---|---|---|---|---|
0x123F | stdhdr | STDHDR1..PMSGMAX | Mand | N/A | Any | Contains command_id: 13 - tpnotify(3) message. 14 - tpbroadcast(3) message. |
0x1249 | destclient | STRING0..96 | Mand | N/A | 13 | Client myid to which deliver the notification. |
0x1253 | nodeid | STRING0..60 | Mand | Empty | 14 | Cluster node id (lmid argument of tpbroadcast(3)). |
0x125D | nodeid_isnull | INT1 | Mand | 0 | 14 | If set to 1, indicates that nodeid is part of brodcast matching. If no matching is used, value 0 must be used. |
0x1267 | usrname | STRING0..60 | Mand | Empty | 14 | Target username used for broadcast. Currently not used, and shall be empty. |
0x1271 | usrname_isnull | INT1 | Mand | 0 | 14 | If set to 1, Indicates that usrname is part of broadcast destination matching. If no matching is used, value 0 must be used. This is reserved for future use and shall be set to 0. |
0x127B | cltname | STRING0..60 | Mand | Empty | 14 | Client binary name used for broadcast matching. |
0x1285 | cltname_isnull | INT1 | Mand | 9 | 14 | If set to 1 indicates that recipients shall be matched by process name. If set to 0 cltname matching is not used. |
0x1299 | reply_to | STRING0..128 | Mand | N/A | Any | Caller queue identifier. |
0x12A3 | callstack | STRING0..32 | Mand | N/A | Any | From left to right. Each byte indicates the Enduro/X cluster node ide from which message was forwarded to next node. When tpcall()/tpforward() or tpconnect() is made from one node to another, the source node number (NDRX_NODEID) is appended to callstack. When reply message is processed (e.g. tpreturn), the closest to the left connected node of the current node is used to deliver reply back. |
0x12AD | my_id | STRING0..96 | Mand | N/A | Any | Call originator MYID |
0x12B7 | sysflags | LONG1..20 | Mand | 0 | Any | RFU, System bitwise flags. Shall be set to 0. |
0x12C1 | cd | INT1..5 | Mand | 0 | Any | RFU, Call Descriptor. Shall be set to 0. |
0x12CB | rval | INT1..10 | Mand | 0 | Any | RFU, return value. Shall be set to 0. |
0x12D5 | rcode | LONG1..20 | Mand | 0 | Any | RFU, return code. Shall be set to 0. |
0x12DF | flags | LONG1..20 | Mand | 0 | Any | API bitwise flags used by tpnotify(3) and tpbroadcast(3), such as TPNOBLOCK, TPNOTIME, TPSIGRSTRT, TPACK, TPREGEXMATCH. See API descritpions and xatmi.h for constants. |
0x12E9 | timestamp | LONG1..20 | Mand | N/A | Any | Unix epoch time stamp indicating when message was prepared. |
0x12F3 | callseq | UINT1..10 | Mand | 0 | Any | RFU. 0 shall be used. |
0x12FD | msgseq | UINT1..10 | Mand | 0 | Any | RFU. 0 shall be used. |
0x1307 | timer | NTIMER | Mand | 0 | Any | Local monotonic time when the call was prepared/sent from the node to other node. |
0x131B | data | MUBF | Mand | N/A | Any | Associated XATMI data buffer with the call. In case if data is not used, NULL typed buffer must be sent |
0x1325 | destnodeid | LONG1..20 | Mand | N/A | Any | Destination cluster node id. |
Fields for non applicable commands/messages shall be empty string or 0 integer.
This secion descirbes core message flow using for notifications.
The notifications are delivered in asyncrhous way, no reply is required. The command_id shall be set to 13.
tpbroadcast(3) message example
0000 10 05 00 00 00 06 01 77 96 16 84 90 10 0f 00 00 .......w........
0010 00 01 4e 10 19 00 00 00 02 01 40 10 2d 00 00 01 ..N.......@.-...
0020 35 12 3f 00 00 00 19 10 37 00 00 00 02 01 40 10 5.?.....7.....@.
0030 41 00 00 00 04 00 00 00 00 10 4b 00 00 00 01 00 A.........K.....
0040 12 49 00 00 00 00 12 53 00 00 00 00 12 5d 00 00 .I.....S.....]..
0050 00 01 10 12 67 00 00 00 00 12 71 00 00 00 01 10 ....g.....q.....
0060 12 7b 00 00 00 0a 61 74 6d 69 63 6c 74 41 33 39 .{....atmicltA39
0070 12 85 00 00 00 01 00 12 99 00 00 00 23 2f 64 6f ............#/do
0080 6d 31 2c 63 6c 74 2c 72 65 70 6c 79 2c 61 74 6d m1,clt,reply,atm
0090 69 63 6c 74 41 33 39 2c 31 33 30 31 33 37 2c 31 icltA39,130137,1
00a0 12 a3 00 00 00 00 12 ad 00 00 00 19 63 6c 74 2c ............clt,
00b0 61 74 6d 69 63 6c 74 41 33 39 2c 31 33 30 31 33 atmicltA39,13013
00c0 37 2c 31 2c 31 12 b7 00 00 00 01 00 12 c1 00 00 7,1,1...........
00d0 00 01 00 12 cb 00 00 00 01 00 12 d5 00 00 00 01 ................
00e0 00 12 df 00 00 00 04 83 88 60 80 12 e9 00 00 00 .........`......
00f0 06 01 63 35 62 07 80 12 f3 00 00 00 01 00 12 fd ..c5b...........
0100 00 00 00 01 00 13 07 00 00 00 14 00 00 00 00 00 ................
0110 00 00 02 50 88 00 00 00 00 00 02 97 15 27 08 13 ...P.........'..
0120 1b 00 00 00 2a 13 2f 00 00 00 01 00 13 43 00 00 ....*./......C..
0130 00 1d 10 ff 00 00 00 05 01 67 77 32 21 11 45 00 .........gw2!.E.
0140 00 00 0c 41 41 30 31 30 30 30 30 30 30 30 31 13 ...AA0100000001.
0150 25 00 00 00 01 20 %....
